Docks kit 6'x16' semi-floating & 6'x16' floating & 16'x16' floating Heavy Duty Docks

Take advantage of our complete dock package with "L" configuration including a 6'x16' semi-floating dock, a 6'x16' floating dock and a 16'x16' floating dock from the Heavy Duty series with 16" floats.

Everything you need to connect your dock sections is also included in the kit.

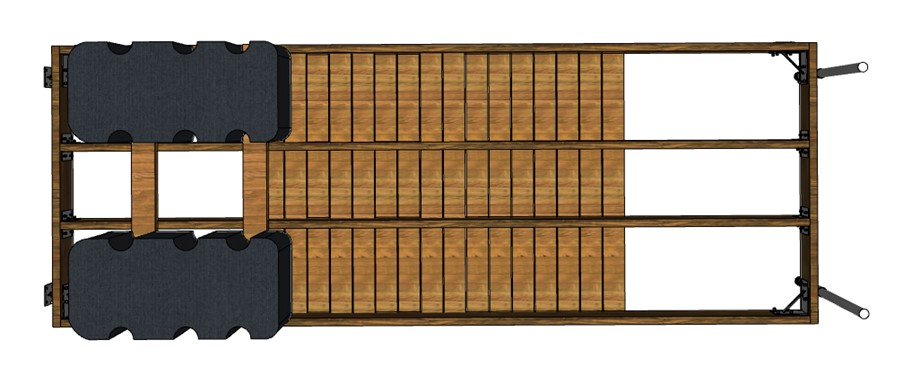

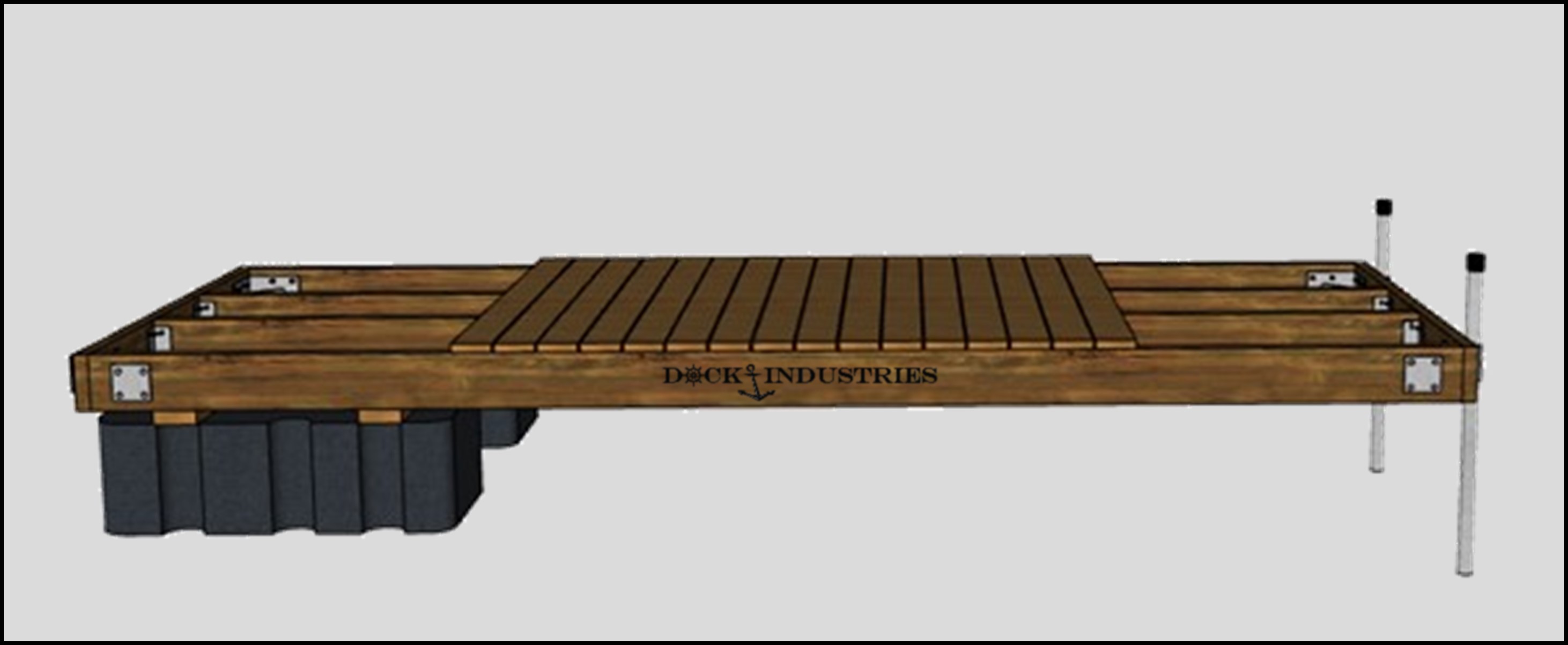

6'x16' Semi-floating dock

Material included:

4 x 30030 - HD Reinforced Inside corner

4 x 3300 - HD Backer plate

4 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)

2 x 79003 - HD Double joist kit

2 x 79-001 - HD Big-T Connector hinges

2 x 30021 - HD Side leg holder

2 x 1112-04 - Galvanized leg pipe 1-7/8'' x 4'

2 x 1115 - PVC pipe cap 1-7/8"

2 x C2516 - Eagle Floats 24"x60"x16"

2 x 30061 - Hex. bolts for floats (pkt.4)

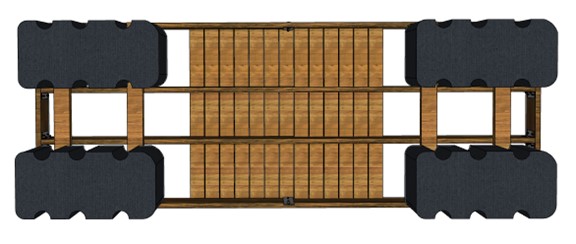

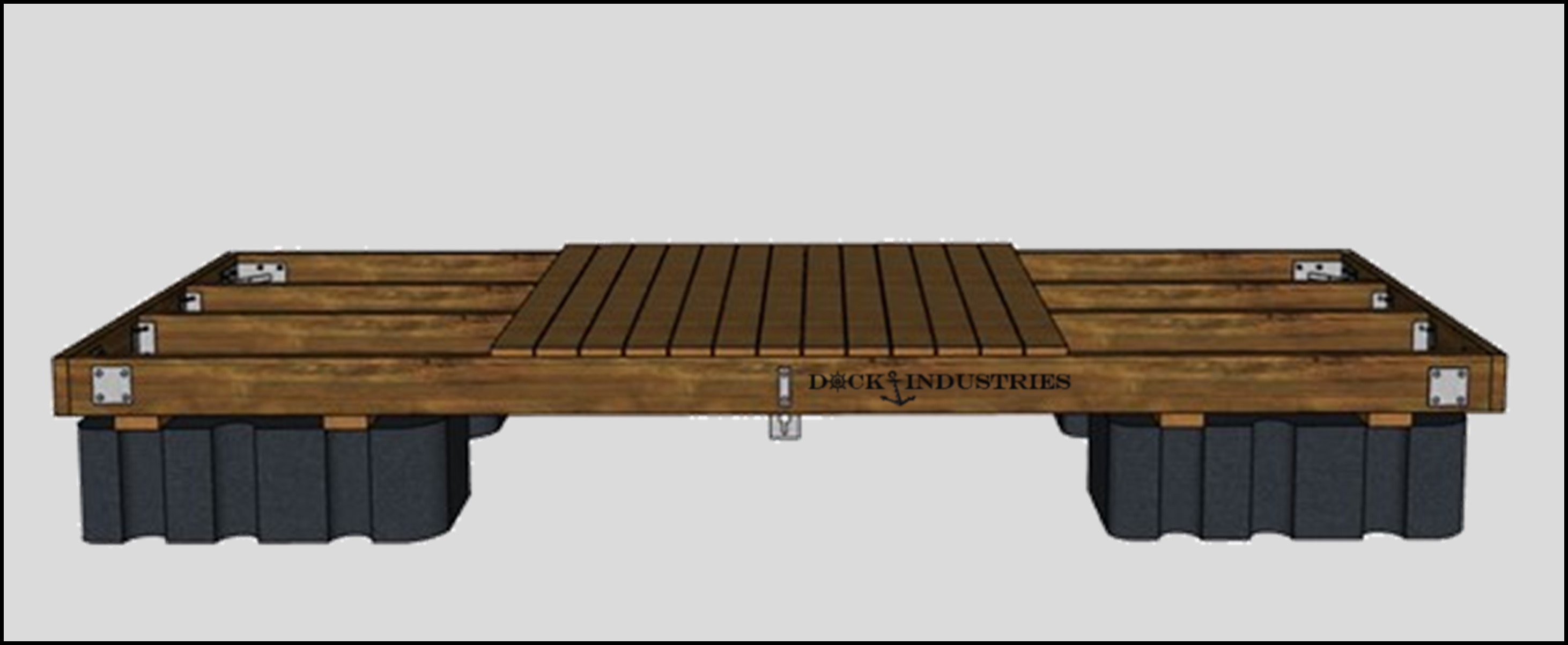

6'x16' floating dock

Material included:

4 x 30030 - HD Reinforced Inside corner

4 x 3300 - HD Backer plate

5 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)

2 x 79003 - HD Double joist kit

2x 79001 - HD Big-T Connector hinges

2 x 2003 - HD Anchor chain plate

2 x 30050 - HD Backer plate

1 x 1109 - 2x15' Chain 5/16"

4 x C2516 - Eagle Floats 24"x60"x16"

4 x 30061 - Hex. bolts for floats (pkt.4)

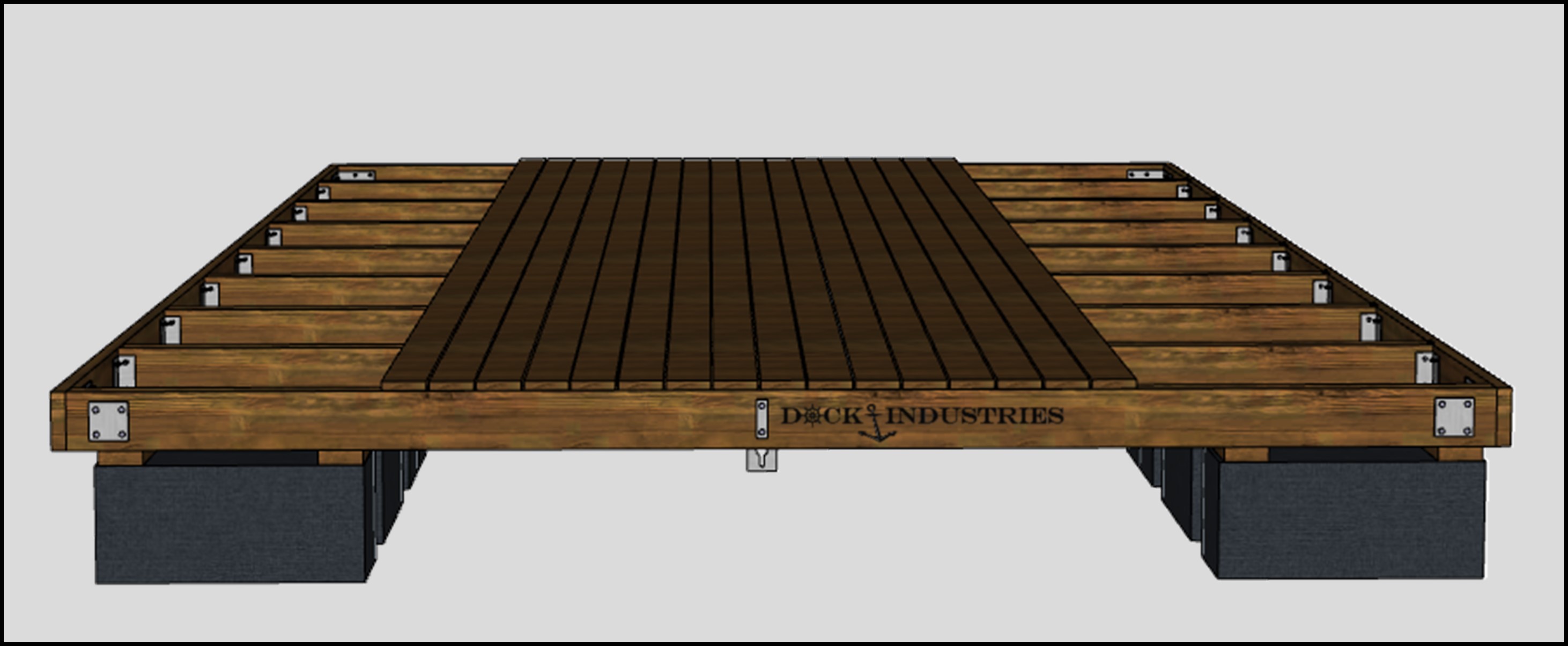

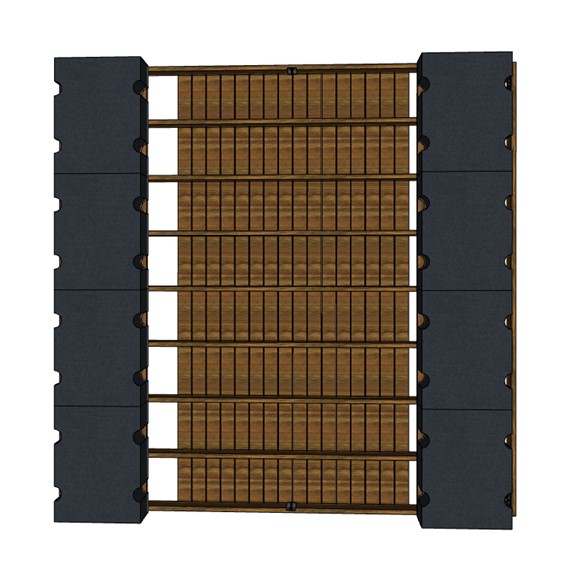

16'x16' Floating dock

Material included:

4 x 30030 - HD Inside Reinforced corner

10 x 3300 - HD Backer plate

6 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)

7 x 79003 - HD Double joist kit

2 x 2003 - HD Anchor chain plate

2 x 30050 - HD Backer plate

2 x 1109 - 2x15' Chain 5/16"

2 x 1130 - Quick link stainless 5/16"

8 x C3416 - Eagle Floats 36"x48"x16"

8 x 30061 - Hex. bolts for floats (pkt.4)

We also provide you with the DIY plans as well as the sizes and quantities of wood to purchase.

(Wood not included)
