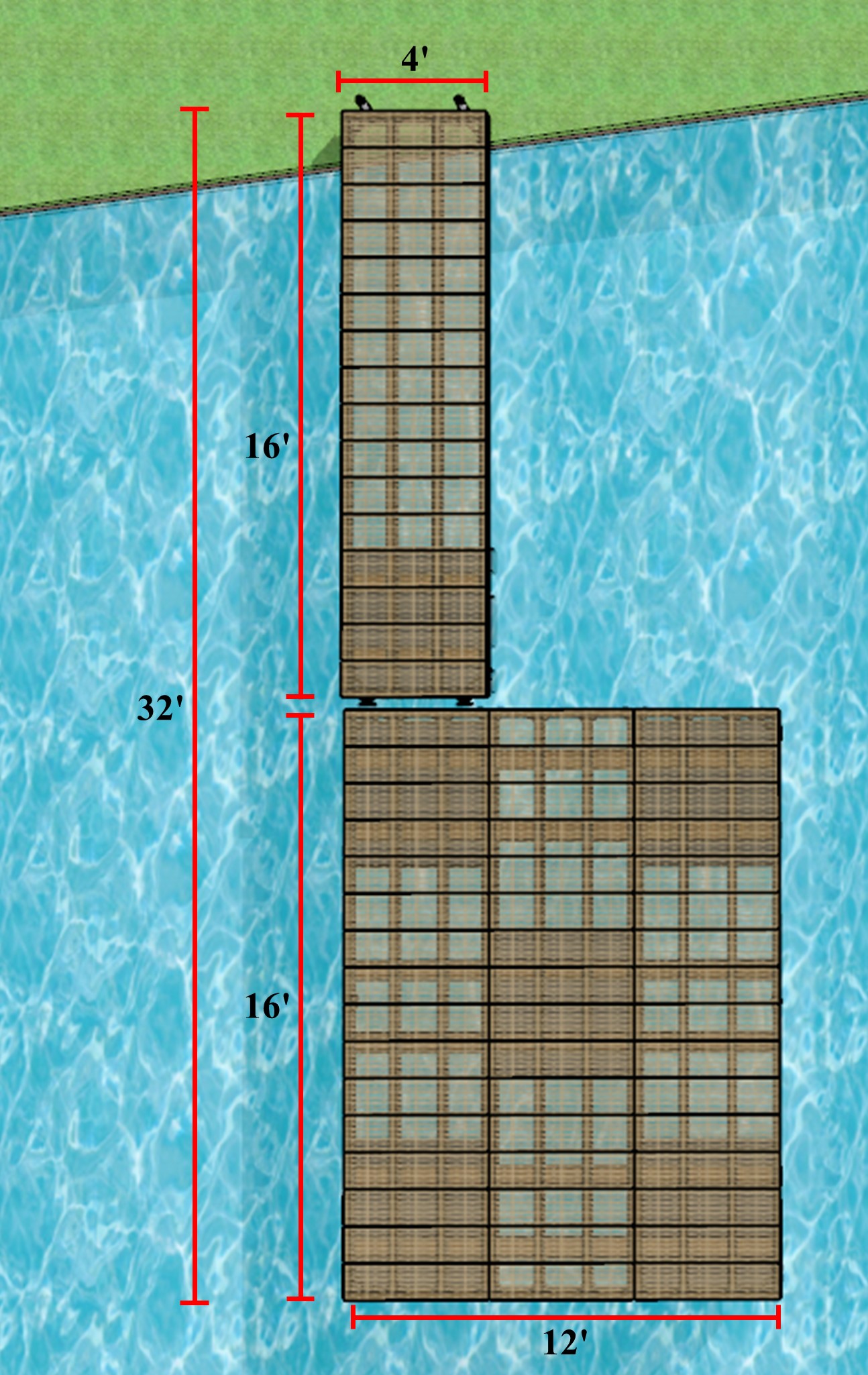

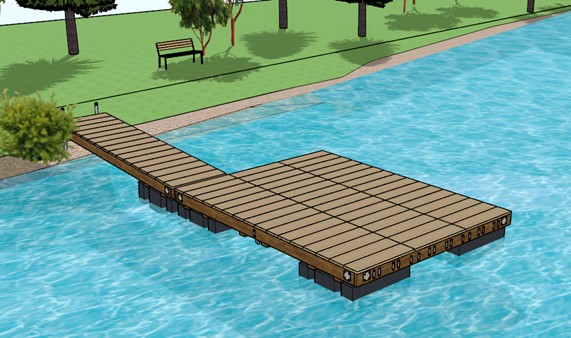

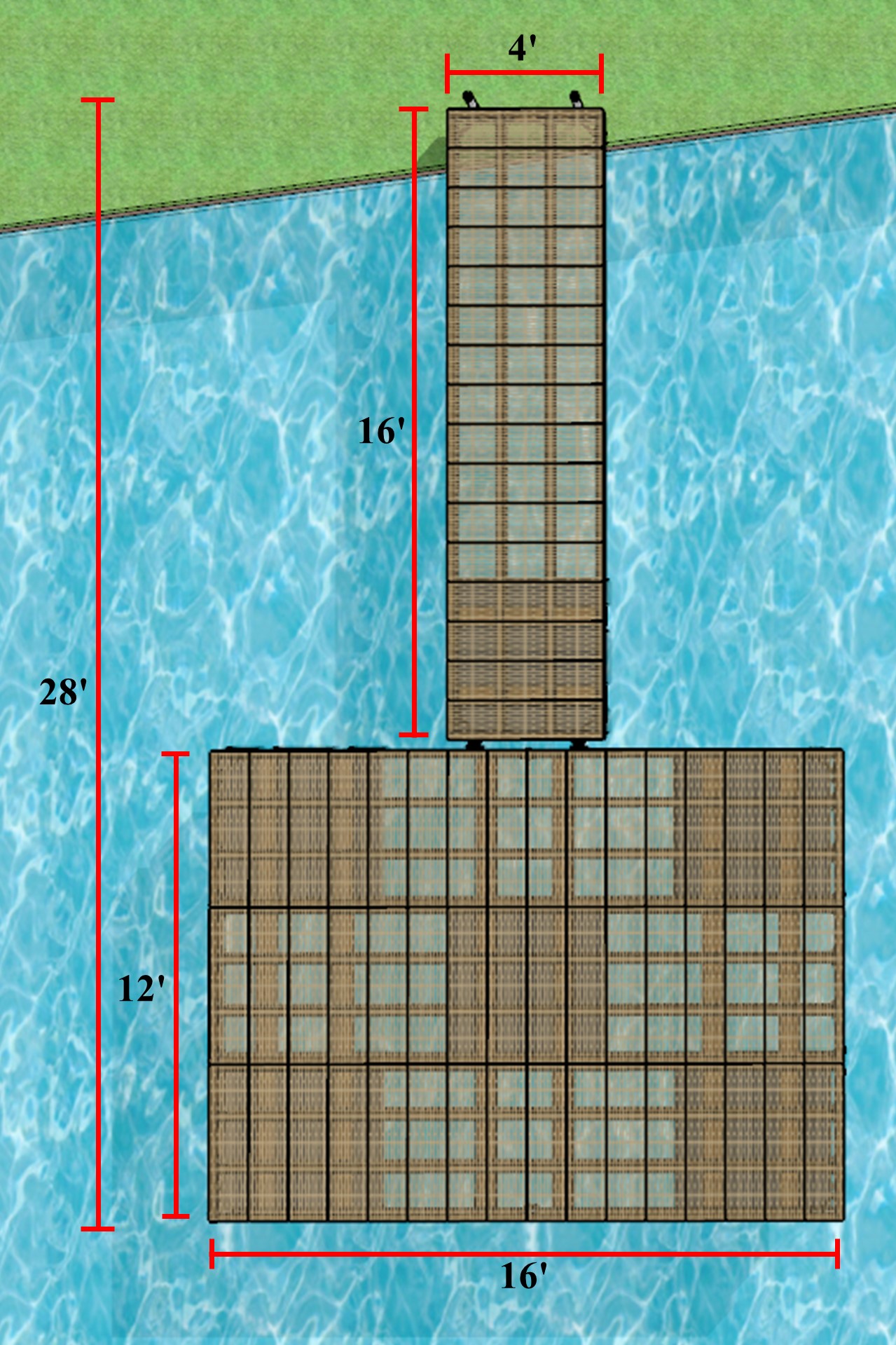

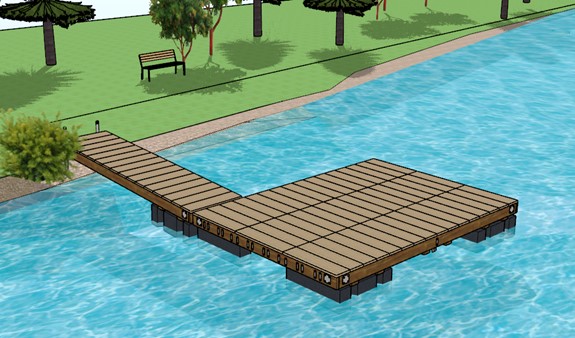

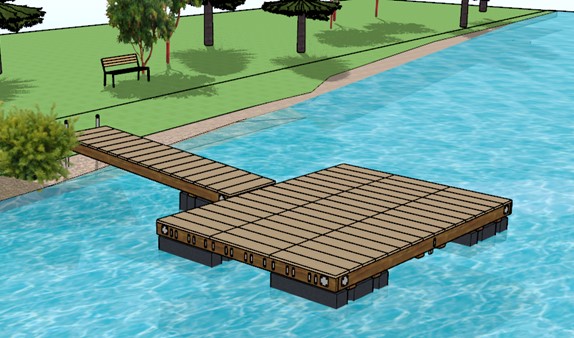

4'x16' Semi-Floating & 12'x16' Floating Heavy Duty Docks Kit - Thruflow Decking - TFP

Take advantage of our complete dock package including a 4'x16' semi-floating dock and a 12'x16' floating dock.

This kit is from the Heavy Duty series with 16" floats and Thruflow decking.

All you need to connect your dock sections is also included in the kit.

Available in two covering colors: Beige and Gray.

4'x16' Semi-floating dock

Material included:

4 x 30030 - HD Reinforced Inside corner

6 x 3300 - HD Backer plate

5 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)

2 x 79003 - HD Double joist kit

2 x 79-001 - HD Big-T Connector hinges

2 x 30021 - HD Side leg holder

2 x 1112-04 - Galvanized leg pipe 1-7/8'' x 4'

2 x 1115 - PVC pipe cap 1-7/8"

1 x C4416 - Eagle Floats 48"x48"x16"

1 x 30061 - Hex. bolts for floats (pkt.4)

16 x XP TF4 - XP Thruflow decking 4'x12"

1 x 30082-50 - S/S 2-1/2" Pan head screws (pkt.50)

1 x 30082-100 - S/S 2-1/2" Pan head screws (pkt.100)

12'x16' Floating dock

Material included:

4 x 30030 - HD Inside Reinforced corner

8 x 3300 - HD Backer plate

5 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)

6 x 79003 - HD Double joist kit

2 x 79003-45 - HD XL Double joist kit

2 x 2003 - HD Anchor chain plate

2 x 30050 - HD Backer plate

2 x 1109 - 2x15' Chain 5/16"

2x 1130 - 5/16" Stainless Quick Link

5 x C4416 - Eagle Floats 48"x48"x16"

5 x 30061 - Hex. bolts for floats (pkt.4)

48 x XP TF4 - XP Thruflow decking 4'x12"

4 x 30082-100 - S/S 2-1/2" Pan head screws (pkt.100)

We can also provide you with self-built plans, as well as the dimensions and quantities of wood to be purchased.

(Wood not included)

***Depending on configuration and water level, you may need additional chain.***
